Project Details

  • Client: CB1 Building & Carpentry
  • Architect: CB1 Building & Carpentry
  • Main Contractor: CB1 Building & Carpentry
  • Photos: CB1 Building & Carpentry

Products Supplied

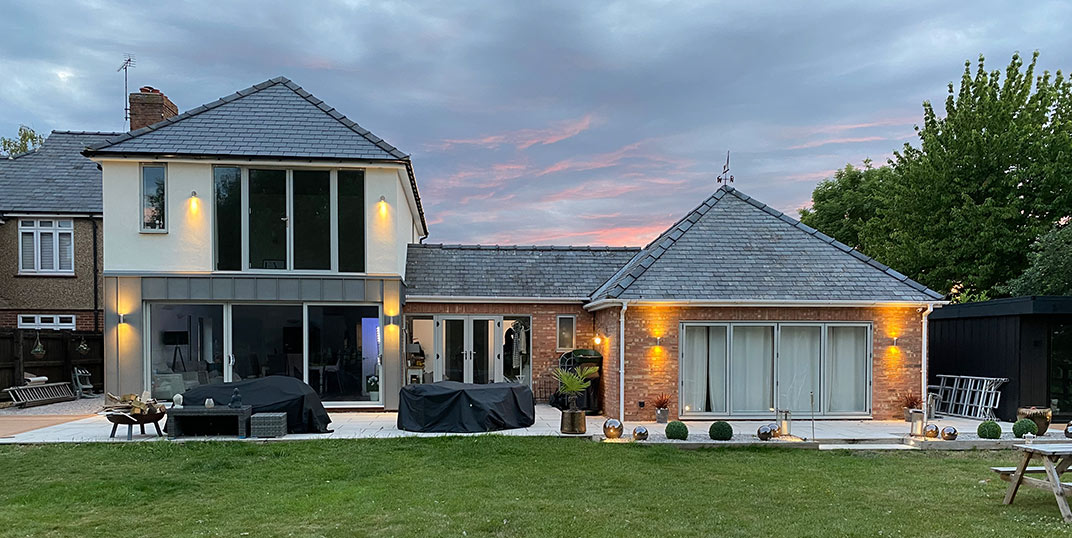

  • This project used the full range of Ali VU including the Ali VU casement and French casement window and doors from the Ali Fold and Slide ranges, all finished in Agate grey (RAL 7038).

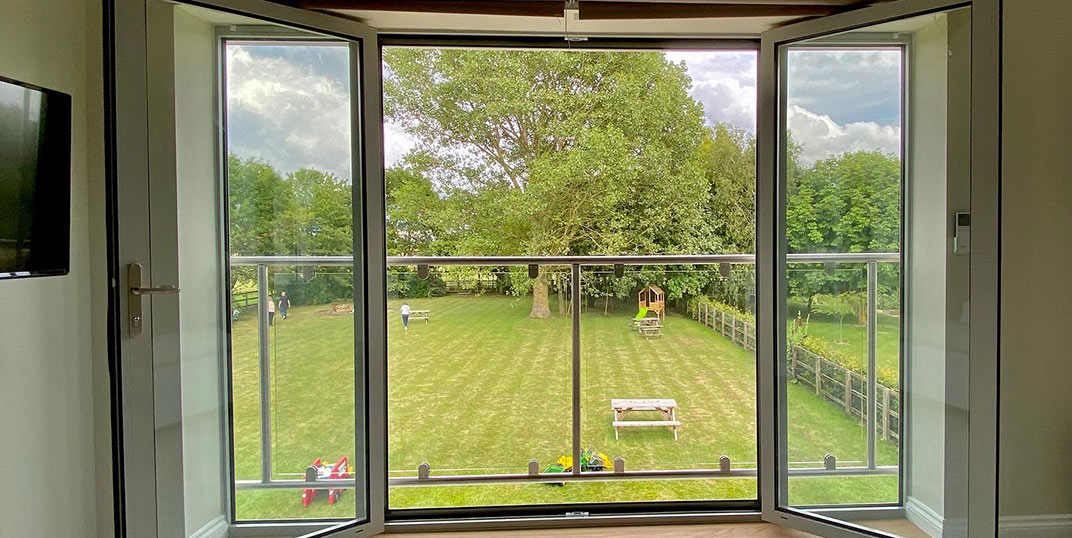

  • In the bathroom and bedroom Ali VU French casement windows were installed, with a central floating Mullion which gives a fully opening aperture - making the most of the uninterrupted views that this home benefits from. Colour matched Georgian bars finish off the stylish windows.
  • Ali VU is a super slimline aluminium window, the polyamide thermal break in this system gives impressive thermal efficiency. Available with a host of design options, Ali VU’s strong super slim frame has a depth of just 38mm (fixed light) or 66mm with standard vent and is available in sizes up to a maximum of 1400mm x 1400mm, to give the widest views and maximise daylight in every room. The Ali VU casement window has been designed to meet current and future building regulations, with impressive U values and thermal performances

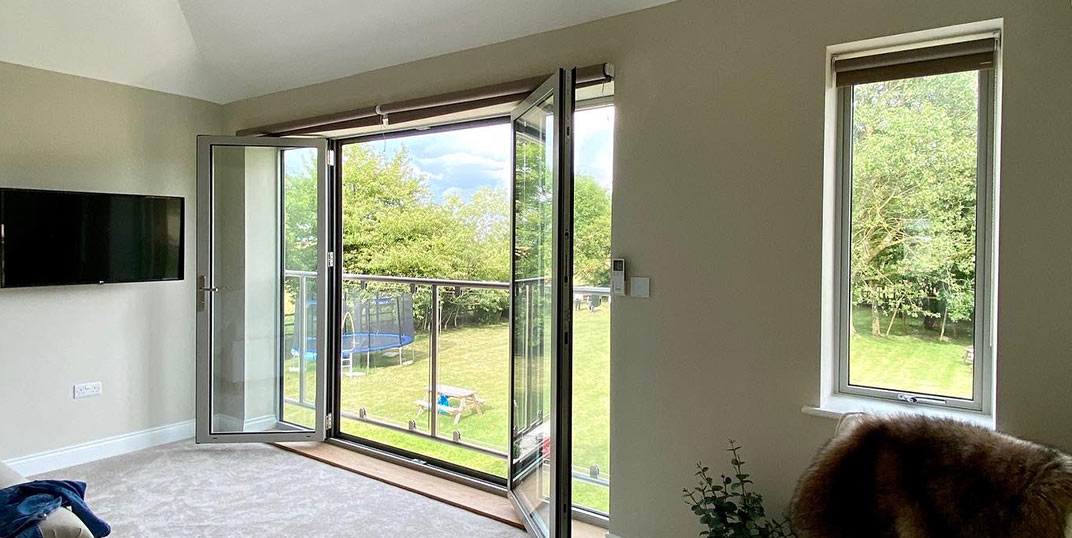

  • The Juliet balcony on the first floor was fitted with the Ali Fold door, a stylish and high performance aluminium door that takes advantage of the breathtaking views. Suitable for both commercial and domestic use, Ali Fold doors have a polyamide thermal break to give impressive thermal efficiency and are fully compatible with all Senior windows and curtain walling. It is available as a single, double or folding/sliding combination. For maximum daylight a heavy duty version allows leaf sizes of 1300mm x 2400mm with a maximum leaf weight of 125Kg. Available in an almost unlimited range of colours and finishes both inside and out, Ali Fold doors have narrow sight lines and are available in a choice of configurations and sizes. Further thermal enhancement is available and with a life expectancy in excess of 40 years, the Ali Fold door range is 100% recyclable and exceeds current and meets future building regulations.

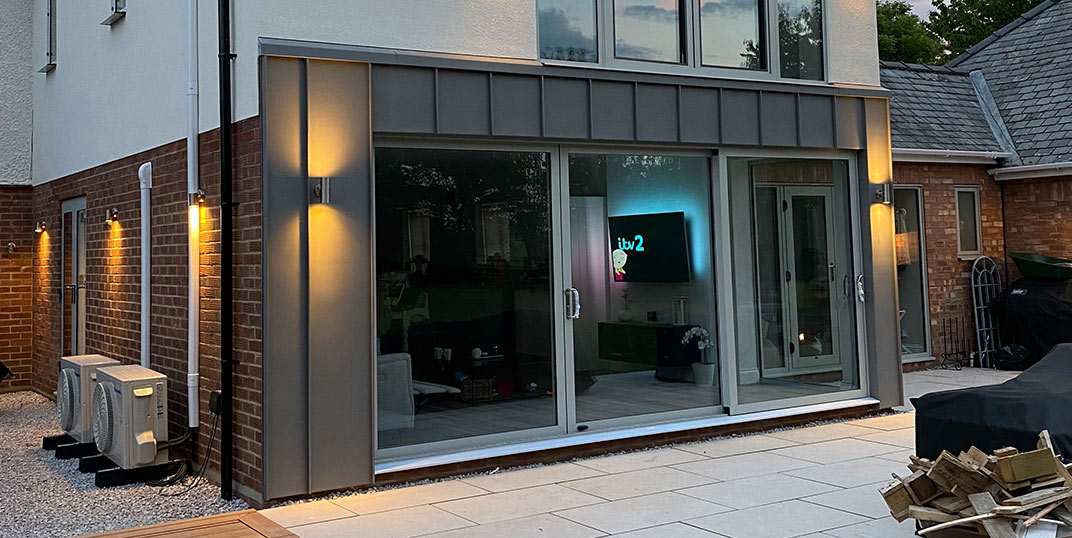

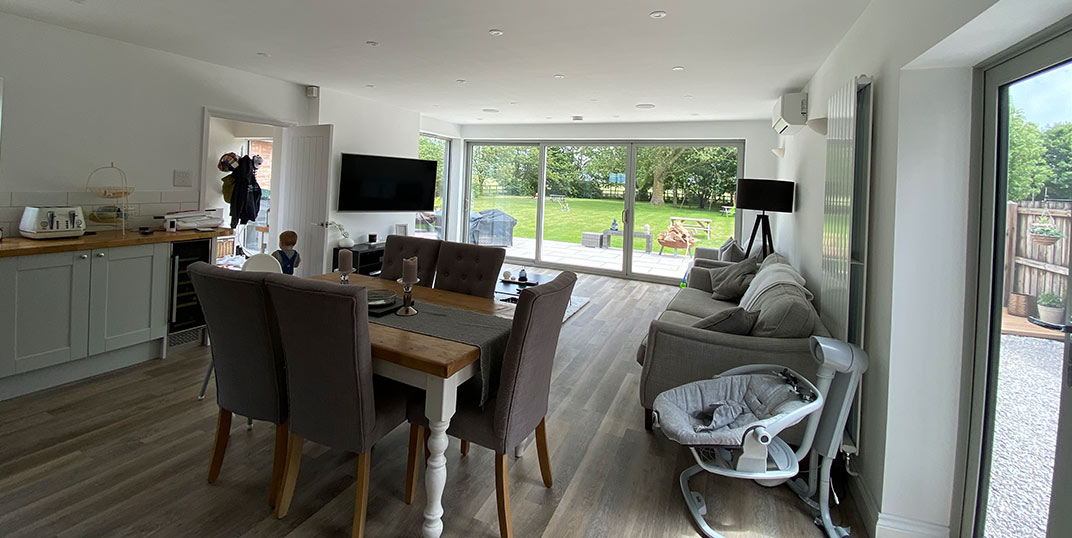

  • On the ground floor, the stunning Seniors Ali Slide door was chosen for it’s slimline frame and incredible thermal and security properties. The huge sliding doors in the kitchen diner provide maximum daylight, with an interlock of just 50mm and locking hardware with PAS24 security. The doors are also available with an interlock of 79mm, which uses the same locking hardware, making both options ideal for both domestic and commercial use. Designed to suit all budgets, this mid range door is suitable for a wide range of applications. Ali Slide doors have a polyamide thermal break to give impressive thermal efficiency with U values as low as 1.64 W/m2K and are fully weather tested.
  • Ali VU is ideal for both domestic and large scale residential projects and is perfectly complemented by our Ali FOLD and SLIDE door range. The stepped face option also means that Ali VU is perfect as a modern, energy efficient replacement for heritage style steel windows in both commercial and residential buildings. It combines the long life and low maintenance of powder coated aluminium externally with a polyamide high performance thermal barrier. Ali VU casement windows are capable of accepting glazing up to 44mm thick with other thicknesses available upon request. Ali VU is an evolved generation of aluminium window and door systems manufactured in the UK.
