Architectural Aluminium Glazing Products
  • Flegg High School
  • Flegg High School
  • Flegg High School
  • Flegg High School
  • Flegg High School
  • Flegg High School
  • Flegg High School
  • Flegg High School
  • Flegg High School

Project Details

  • Client: Flegg High Ormiston Academy
  • Main Contractor: Ali Systems Ltd
  • Photos: Ali Systems Ltd

Products Supplied

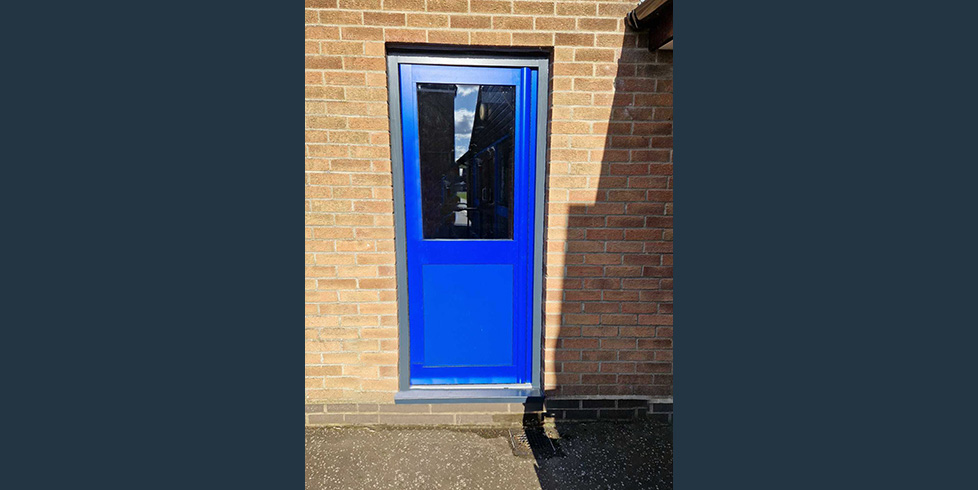

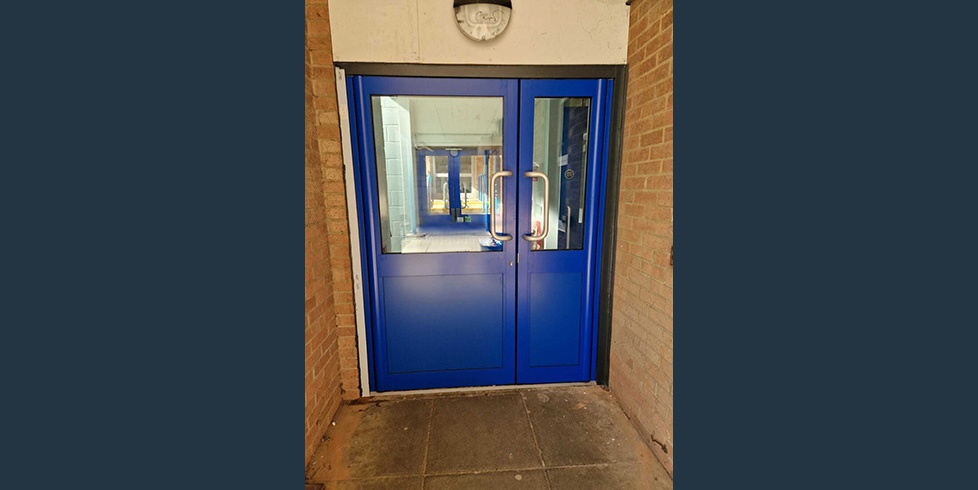

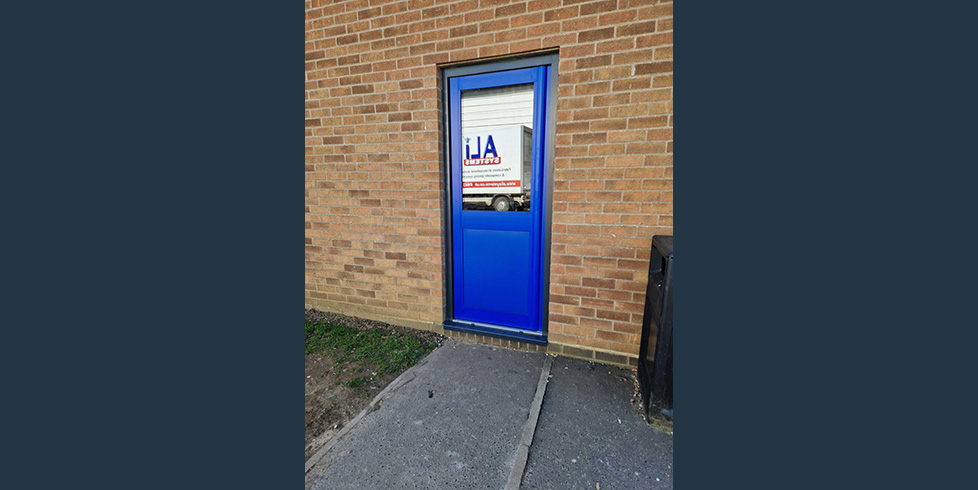

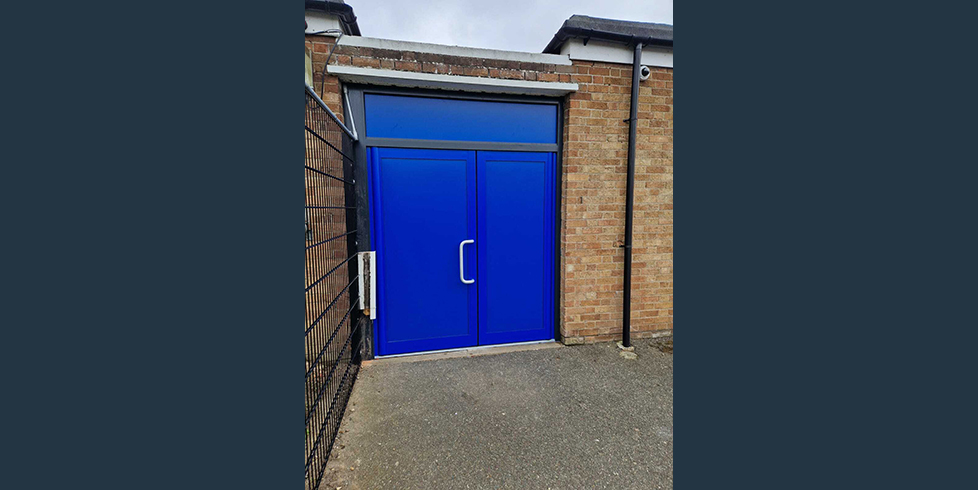

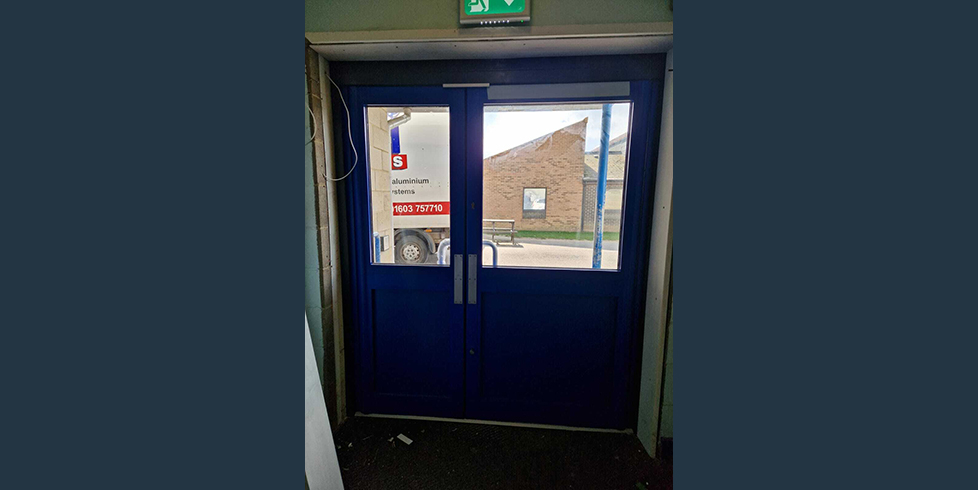

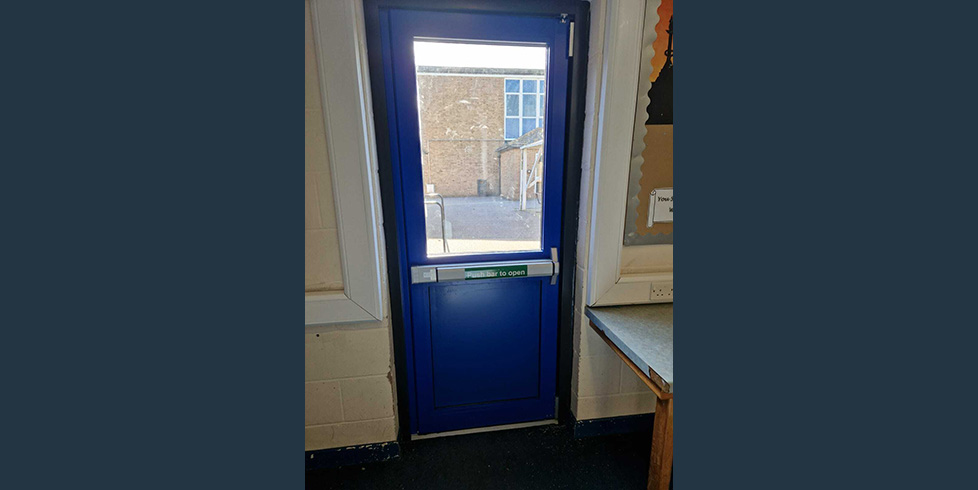

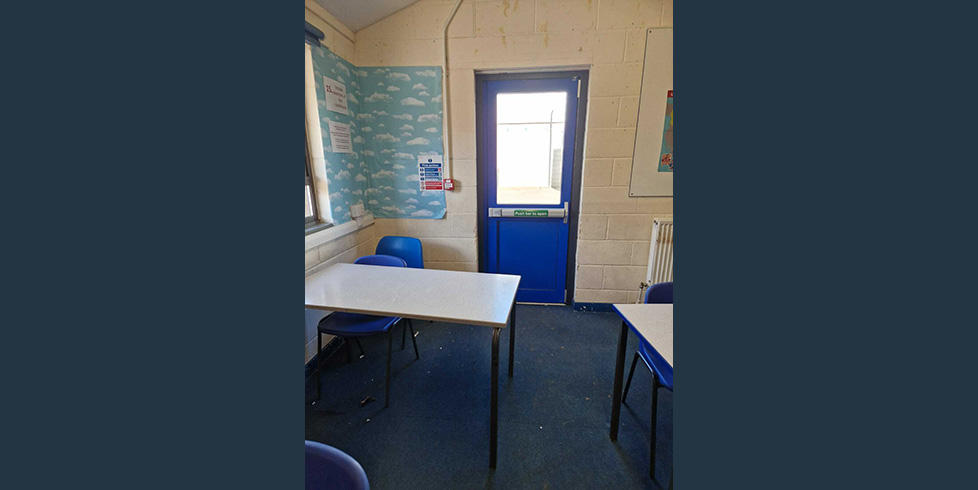

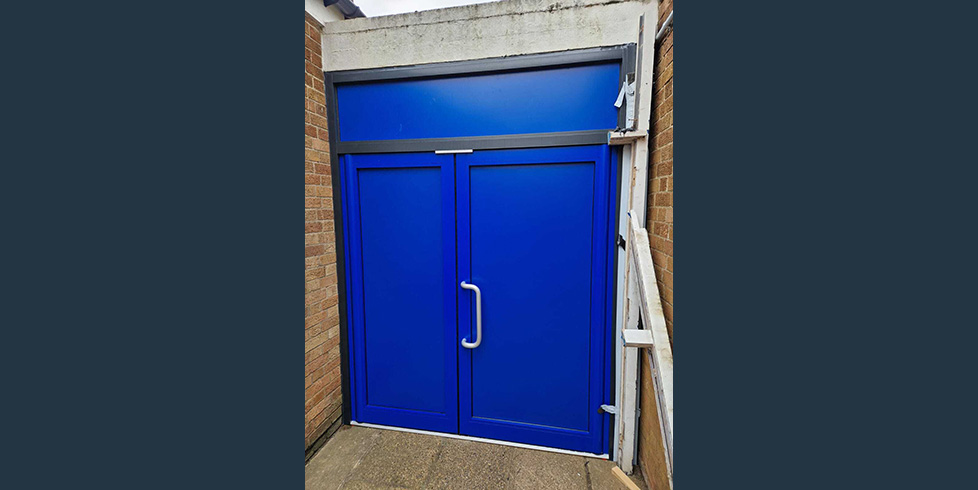

  • SAPA ST II Doors in Marine Specification x 15
  • The Stormframe STII High Traffic aluminium door provides the ideal solution for high pedestrian traffic applications such as Flegg High Ormiston Academy.
  • Stormframe STII System Features
    • Multi-point lock with lever/lever handles
    • Electromagnetic locks
    • Panic exit devices
    • Single point locks
    • Electric strikes
    • Flexible position fixing plate, within the stile, profile securely fixes hardware
    • Dedicated profile pocket filler maintains a quality finish to door edges
    • Door stile end mouldings provide improved finish and allow a continuous seal across the bottom of the door
  • Additional features
    • Utilising existing frame profiles reduces tooling investment
    • Extensive range of functional options including anti-finger trap safety stile
    • Available with Dual Colour option
    • Door leaf glazing options up to 46mm
    • Door size up to 3.0m high
    • Door weights up to 100Kg for centre pivot, 140Kg for hinged rebated doors
    • Excellence in façade design
  • WEATHER PERFORMANCE
    • Capable of BS6375-1:2015 watertightness levels:
    • Centre Pivot AFT single door - Class 3A (100 Pa)
    • Hinged Rebated single door - Class 5A (200Pa)
